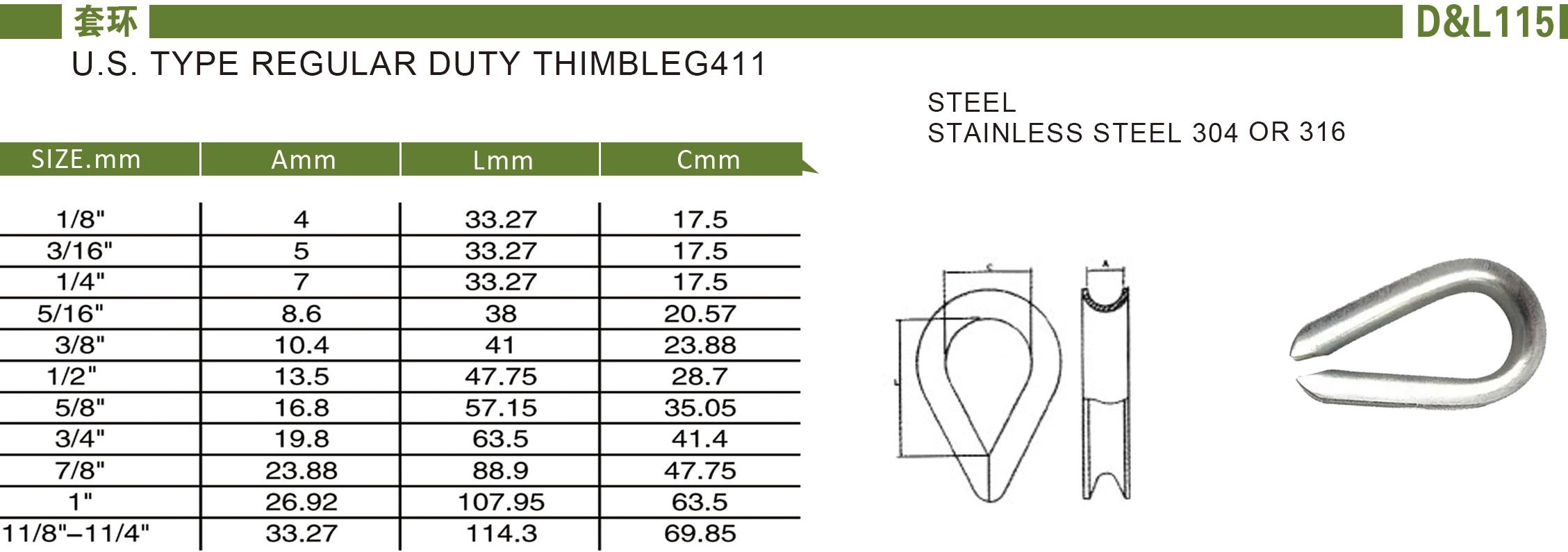

U.S. TYPE REGULAR DUTY THIMBLE G411

  1. 上一篇： THIMBLE DIN6899B D&L121 下一篇： U.S. TYPE HEAVY DUTY THIMBLE G414 D&L123

  2. U.S. TYPE REGULAR DUTY THIMBLE G411

  4. dingli@dinglisling.com 0086-312-8152888
    0086-13733399927
  5. Chat Online Send Message

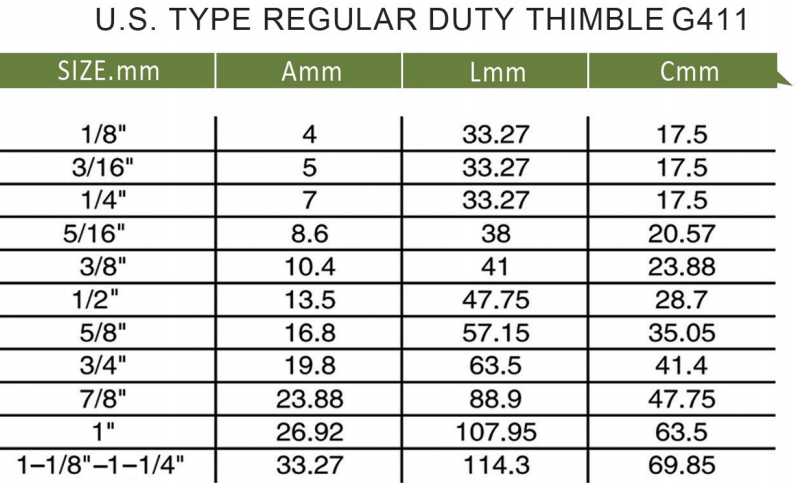

Specifications




Inch MM Amm Lmm Cmm
1/16 1.5
3/32 2
5/32 4
1/8 3 4 33.27 17.5
3/16 5 5 33.27 17.5
1/4 6 7 33.27 17.5
5/16 8 8.6 38 20.57
3/8 10 10.4 41 23.88
7/16 11
1/2 13 13.5 47.75 28.7
5/8 16 16.8 57.15 35.05
3/4 19 19.8 63.5 35.05
7/8 22 23.88 88.9 41.4
1 25 26.92 107.95 63.5
1-1/8-1-1/4 28 33.27 114.3 69.85
1-1/4-1-3/8 32
1-3/8-1-1/2 38
1-5/8 41
1-3/4 44
1-7/8 48
2 51
2-1/2 63
3 76
4 102

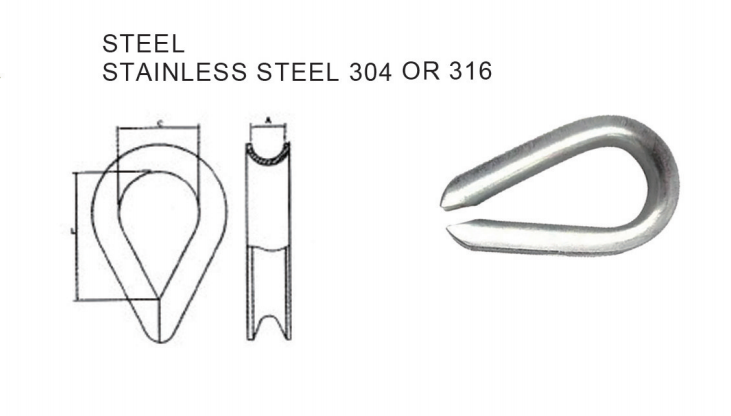

Product Features:

Made by Carbon Steel.

Hot Dip galvanized.

The standard choice for light duty applications and loading conditions.

Meet the performance requirements of Federal Specification FF-T-276b Type II.
Longer Service life.
Resist corrosion
